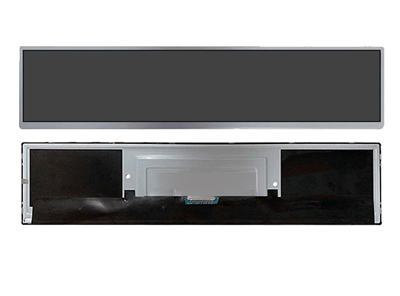

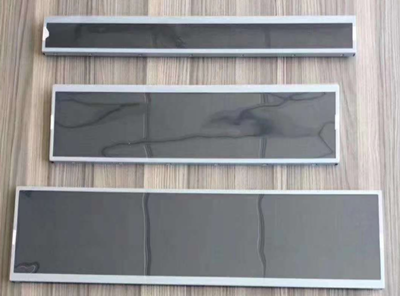

BOE Original New 19'' 21'' 24'' 28'' Stretched Bar LCD Panel
Mode:
Release time：2021-03-03
Characteristics

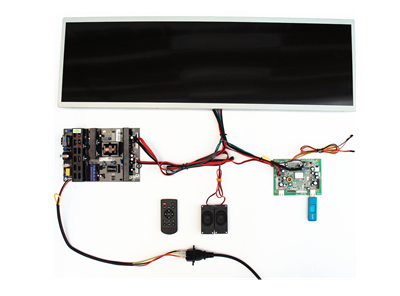

Bar Display structure design by fliexibility, mobility and fast to deploy. Especially suitable shopping center, public transport, exhibition and kind of space-constrained environment. Stretched Bar LCD Panel doesn't include case. It's mainly provided for manufacturing or brand. But we can provide matching AD Board and OSD Keyboard, just need to connect with your interface or device to work it.
Main Features:
With an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of-20 ~ 60°C .
It's general features are summarized in the following: WLED Backlight, Bar Display, Reverse I/F, Matte ,
Energy Star 6.0 Compliance.

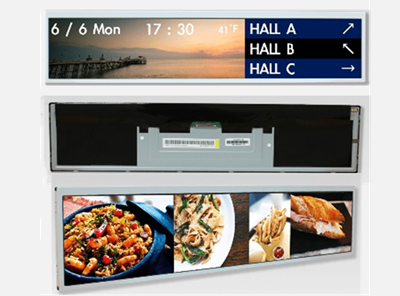

Based on its features, recommend that this model be applied to Digital Signage, Stretched Bar LCD etc.
With an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of-20 ~ 60°C .
It's general features are summarized in the following: WLED Backlight, Bar Display, Reverse I/F, Matte ,
Energy Star 6.0 Compliance.
Based on its features, recommend that this model be applied to Digital Signage, Stretched Bar LCD etc.
| Model No. | DV190FBM-NB0, 1920x360, 300 cd/m2 DV210FBM-N00, 1920x132, 300 cd/m2 DV240FBM-NB0, 1920x360, 300 cd/m2 DV280FBM-NB1, 1920x360, 700 cd/m2 DV366FBM-NB0, 1920x290, 700 cd/m2 DV480FBM-N01, 3840x720, 1000 cd/m2 |
| Panel Type | a-Si TFT-LCD,LCM |
| Surface | Anti-Glare |
| Display Mode | Normally Black |
| Viewing Angle | 89/89/89/89 |
| TFT Cell | Mask / Non-cutting |
| LED Life Time | 30,000 Hrs |
| Display Color | 16.7M Colors |
| NTSC | 72% |
| Contrast | 1,200:1 (Typ) |
| Response Time | 8ms (Max 10ms) |
| Operature Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Touch Screen | Without |
