current position：IR Thermal Imaging Camera

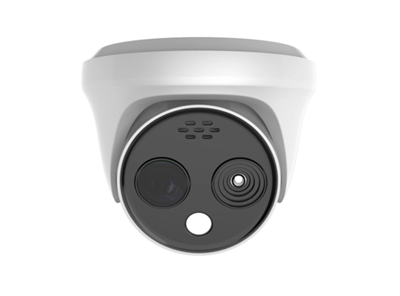

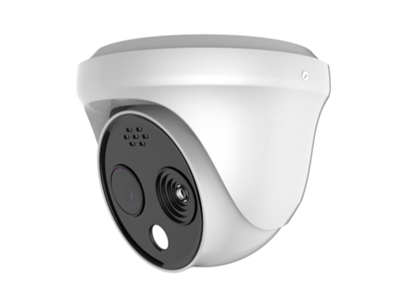

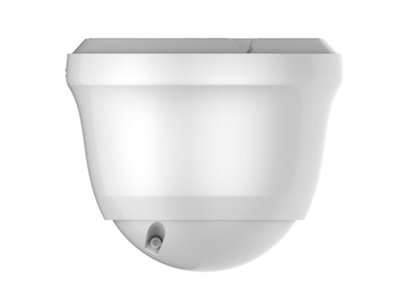

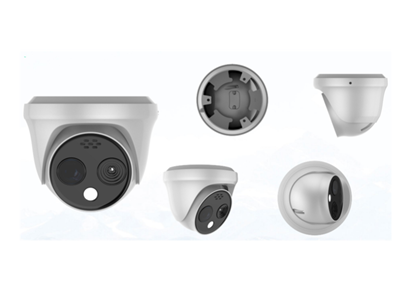

Al Algorithm Fast and Thermal IP Camera with temperature measurement system
Mode:CMLD5HS1KBT
Release time：2021-03-01Fast and Non-contact Thermal IP Camera which supports Face Recognition, Face Capture,Face Comparison, Fever Warning. It can be widely used.
Main Features:
Face Detection, Automatic Face tracking & measuring temperature, Face Capture and screening;
Face Snaping: Built-in deep learning Al algorithm, Support 30 faces detection simultaneous and measure temperature 10-20 faces;
Fast and Non-contact Body Temperature Detection, recommended detection distance 2m (range: 0.25-3m);
Abnormal temperature alarm: the temperature range is 35°C ~42°C , below or above this value range, light flash and voice broadcast Alarm;
Highly accurate temperature measurement: within ±0.5 °C, with black body ±0.3 °C;
Alarm Indicator Light: Support light flash when detect abnormal temperature;
Sound Alarm: Suport light flash when detect abnormal temperature
Support multi-language broadcast
| Camera | |
| Operating system | 1/2.8" SONY Starvis Back-illuminated CMOS sensor |
| Resolution | 4MP |
| Effective Pixels | 2616 (H) x 1964 (V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| Minimun Illumination | 0.01Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Support |
| Lens | |
| Focus Length | 3.6mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 4MP |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4(Profile S/T/G) |
| P2P | YES, Support QR Code |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | Optical: 2592*1944@20fp ; 2560*1920@20fp |
| Main Stream 2 | Optical: 2560*1440@30fp |
| Main Stream 3 | Optical: 1920*1080@30fps ; 1280*720@30fps |
| Sub Stream 1 | Optical: 352*288@30fps |
| Tri Stream | Thermal: 256*192@25fps |
| IE Brower | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12) |
| Smart iphone | iPhone, iPad, Android, Android Pad |
| Thermal | |
| Image sensor | Vox Uncooled Focal Plane Arrays |
| Resolution | 256x192 |
| Pixel Interval | 12μm |
| NETD | Less than 60 mK (@25°C.F#=1.1) |
| Aperture | F1.1 |
| Focal Length | 3.2mm |
| Field of View | 56° x 42° (H x V) |
| Smart Function | |
| Bi-spectrum Image Fusion | Support display the thermal image and optical image simultaneously |
| Face capture | Built-in deep learning Al algorithm, Face snaping support 30 faces detection simultaneous and measure temperature 10-20 faces; |
| Temperature Measurement | Support global and local temperature |
| Temperature measuring distance | Recommended temperature measurement distance 2m (range: 0.25-3m) |
| Temperature Range | 30°C to +45°C |
| Temperature Accuracy | Highly accurate temperature measurement within ±0.5 °C, with black body ±0.3 °C |
| Alarm Indicator Light | Support light flash when detect abnormal temperature |
| Sound Alarm | Built in speaker support voice broadcast when detect abnormal temperature |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering |
| Defog Mode/ROI/BLC | Support |
| WDR | HDR:120dB |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands, Czech,Vietnamese |
| Interface | |
| Audio | 1 Channel Input |
| Alarm | 1 Channel Input/Output |
| SD Card Slot | Support Max 512GB |
| RS485 | Support |
| General | |
| Shell | Metal, IP66 |
| Anti-cut Bracket | No |
| IR Cut Filter | Yes |
| Operation Temperature | -10℃ ~ +40℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Supply | 1000mA/12V |
| Dimension | φ128 x110.9 (H) mm |
| Weight | 800g |
| Installation method | Wall mount installation |
