current position：Access Control Terminal

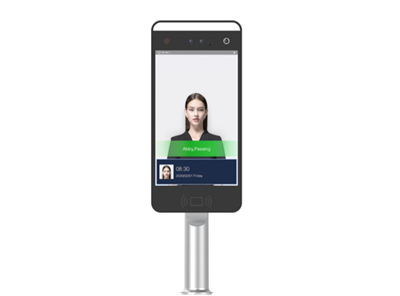

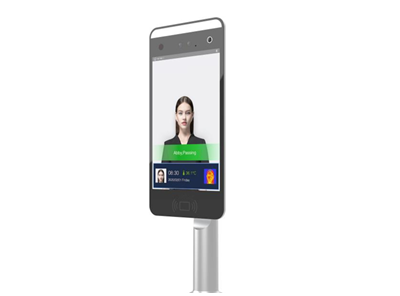

AI Smart Access Control Attendance & Face Recognition Device supporting Swipe Card
Mode:FK05GR
Release time：2021-02-25Smart Access Control & Face Recognition Device. It's reliable and non-contact, and it supports WiFi, Swip card, SD card and Bluetooth 4G Function. Surpporting face recognition, comparison and capture functions, it can be widely used in many applications.
Main Features:
Among Mobile People, People Without Masks Can Be accuturely detected,By facial scanning, it can automatically record personal information and check
the records of relevant people going in and going out, so that it is convenient for personnels to be checked again;
Automatically record abnormal temperature information of the human body and automatically count relevant person;
Adopt deep learning algorithm, support 50,000 face database, 200ms speed recognition, to achieve the rapid movement of personnel;Support data network upload, the device comparison results and snapped photos can be uploaded to the platform for real- time storage, and data
can be continuously uploaded even if the network is off.Camera: 2MP cameras
Operating system: Linux
Display: 10.1 inch IPS HD LCD Screen
Support swipe card check in/ out
Support 4G,WI-FI
It was widely used in school,community,office building,company,super market,hotel,station.etc
Specifications:
| System | |
| Main Processer | RV1109, Dual ARM Cortex-A7, NPU 1.2T |
| Operating system | Embedded LINUX |
| RAM | DDR3 1GB |
| ROM | EMMC 16GB |
| LCD Panel | |
| Size | 10.1inch IPS HD Screen |
| Resolution | 800*1280 |
| Camera1 | |
| Type | 2MP camera |
| Sensor | 1/2.9" GC2053 |
| Resolution | NIR 1280*720@25fps |
| Lens | 4.5mm |
| Camera2 | |
| Type | Daily camera |
| Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307 |
| Resolution | Colorful 1920*1080 25fps |
| Lens | 4.5mm |
| Face Recognition | |
| Detection type | Face Dection, Face Comparison, Mask Detection, Living Body Detection, Face Comparison (With Mask) |
| Face recogition distance | 0.5-2m |
| Face library capacity | Supports up to 30,000 sheets |
| Recognize face angle | Horizontal 60°，Vertical 35° |
| Fault tolerance | Ordinary glasses and short sea surface retention time have no effect on recognition |
| Expression | Under normal circumstances, slight expressions do not affect recognition |
| Response time | About 200ms |
| Local storage | Support 50,000 records |
| Recognition area | Full screen recognition |
| Upload method | TCP, HTTP, MQTT |
| Network features | |
| Network protocol | IPv4, TCP/IP, HTTP, MQTT, RTSP, SMTP, NTP |
| Safe mode | Authentication username and password |
| Alarm linkage mode | Voice broadcast,Abnormal upload to the platform,Alarm output |
| System Upgrade | Support remote upgrade |
| Hardware accessories | |
| Auxiliary light | IR light, LED white light |
| Identification module | Optional ID card reader (can read second-generation ID card information) |
| Audio Out | Built in Speaker support voice broadcast after successful recognition |
| Wi-Fi | 2.4G/5.8G Dual frequency, IEEE 802.11b/g/n, IEEE802.11a/ac |
| 4G(optional) | Support 4G function in China, Europe, Southeast Asia etc |
| Alarm indicator light | Abnormal in red light，Normal in green light |
| Hardware interface | |
| Network interface | RJ45 10M/100M Network Adaptation |
| Alarm input | No |
| Alarm output | Support 1 channel |
| Relay output | Support |
| RS485 | Support |
| USB | 1*USB 2.0 |
| TF card slot | Support max 512GB |
| Wiegand interface | Support Wiegand 26, 34 protocols |
| Reset key | Support |
| General | |
| Shell | Aluminum alloy, Ultra-white tempered glass panel |
| Operating temperature | -10 ° C ~ 50 ° C |
| Working humidity | 10%-90% non-condensing |
| Storage temperature | -20 ° C ~ 50 ° C |
| Storage humidity | 5%-95% non-condensing |
| Supply voltage | DC12V 2A |
| Power consumption | ≤ 18 W |
| Size(mm) | 149(W)*452.9(H)*78.2 (T) |
| Bracket size(mm) | φ40*260.5mm(Bracket fixing hole size D=35mm) |
| Installation method | Desktop Installation/Gate machine Installation/Column Installation |
