current position:Home > Product > Temperature Detection Device

Temperature Detection Device

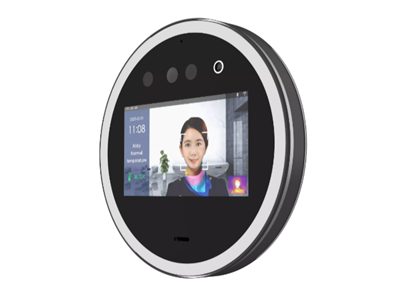

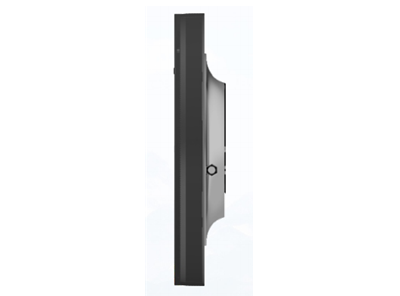

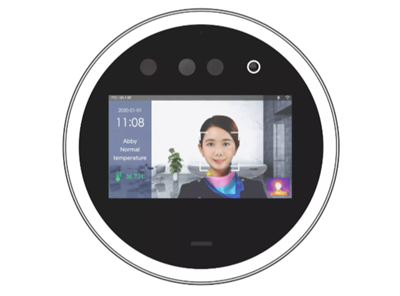

Non-Contact Face Recogniton Temperature Measurement and Access Control Device

Mode:FK03AYW

Release time:2021-02-25
Characteristics

Face Recognition Temperature and Access Control Attendance Device. It's reliable and non-contact, and it's easy-operation to connect to Door-Lock System in widely applications.

Main Features:

It uses the optimal neural network algorithm to recognize faces quickly and accurately.

It has binocular body detection function, high temperature visual warning function, and supports 2000 face comparison library and 5000 recognition records.
It can quickly recognize faces, and the accuracy rate is up to 99.5%. Width dynamic dual-camera anti-counterfeiting function can resist anti-counterfeiting behaviors such as mobile phone photos and videos, computer photos and videos, etc.

It supports stranger detection and multiple product interface protocols. The open interface is used for secondary development for customers to help
customers quickly realize functions such as face recognition, face temperature measurement, personnel attendance, and smart access control.

Face temperature measurement: quick temperature measurement without contact, 200ms real-time temperature measurement quickly responds and
reduces the risk of personnel close temperature measurement.

Staff attendance:online attendance management system, realizing punch-in, online approval, guide and reminder in real-time data interface real-time intuitive statistical results.

Smart access control:compatible with extended access control, channels, gates, and other products.

It can be applied to Public areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public service delivery management
projects and other places that require face access control.

Specifications:
System
Main ProcesserSV806
Operating systemEmbedded LINUX
RAM
DDR3 256MB
ROMEMMC 4GB
LCD Panel
Size5inch IPS HD Screen
Resolution
720*1280
Camera1
Type
200w night vision live camera
Sensor1/5   GC2145
ResolutionNIR 600*800 15fps
Lens2.28mm
Camera2

Type
Daily camera
Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307
ResolutionColorful 1920*1080 30fps
Lens4.3mm
Human Body Temperature Measurement
Temperature measurement distance0.5m~0.75m
Temperature measurement time<2s
Temperature measurement accuracy±0.3℃
Measuring target temperature35℃-42℃
Measuring working environment10℃-40℃
Face Recognition
Detection type
Support face recognition,face comparison,mask detection,living body detection,mask recognition
Face recognition accuracy
99.5%
Face recogition distance
0.5-1.2m
Face library capacitySupports up to 2,000 sheets
Recognize face angle

Horizontal less than 67°,Vertical less than 40°

Fault toleranceOrdinary glasses and short sea surface retention time have no effect on recognition
Expression
Under normal circumstances, slight expressions do not affect recognition
Response timeAbout 200ms
Local storage
Support 5,000 records
Recognition area
Full screen recognition
Upload method
TCP, HTTP,  MQTT
Network features
Network protocolIPv4, TCP/IP,HTTP,MQTT
Safe modeAuthentication username and password
Alarm linkage modeVoice brodcast,Abnormal upload to the platform,Alarm output
System UpgradeSupport remote upgrade
Hardware accessories
Auxiliary lightInfrared fill light, white light fill light
SpeakerSupport voice broadcast for successful recognition results
Wi-Fi2.4G/5.8G Dual frequency,IEEE 802.11b/g/n,IEEE 802.11a/ac
Audio inBuilt-in MIC
Temperature Measurement sensorHeimann32*32
BluetoothBluetooth2.1/3.0/4.2
Alarm indicator lightAbnormal in red light,Normal in green light

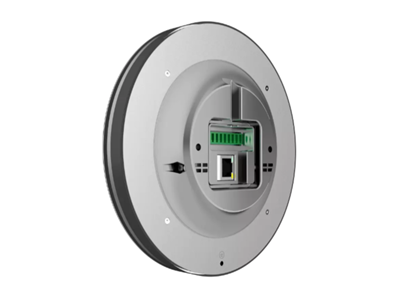

Hardware interface
Network interfaceRJ45 10M/100M Network Adaptation
Alarm input/outputNo
Relay ouputSupport NC,NO,COM
RS485Support
TF card slot/ HDMINo
Wiegand interfaceSupport external Wiegand protocol equipment
Reset keySupport
General
ShellPlastic(PC+ABS)、Alluminum alloy、Glass
Operating temperature10 ° C ~ 40 ° C
Working humidity10%-90% non-condensing
Storage temperature -20 ° C ~ 70 ° C
Storage humidity 5%-95% non-condensing
Supply voltageDC12V 2A
Power consumption≤ 12 W
Size(mm)φ167*18.3mm
Installation method Desktop installation/doorpost installation/wall mounting installation
