Temperature Detection Device

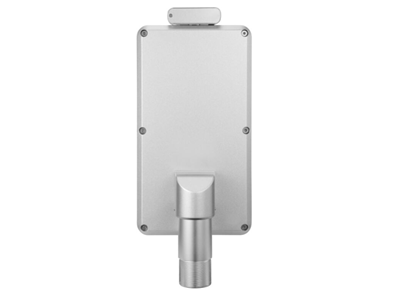

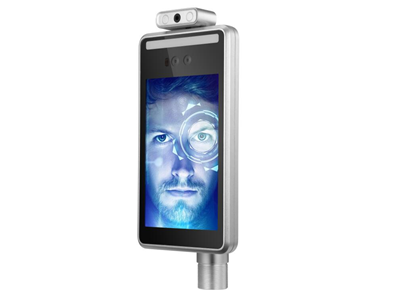

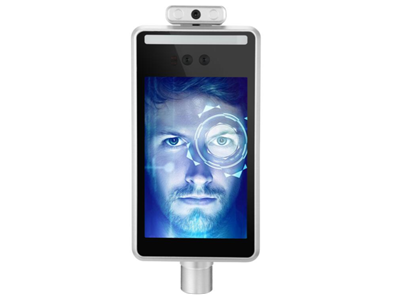

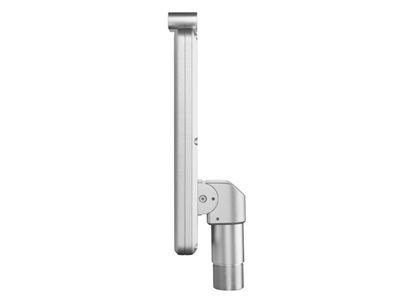

Face Recognition Access Control System Terminal With Body Temperature Measurement

Mode:MTB-M06

Release time:2021-02-24
Characteristics

Face recognition temperature measurement and attendance device

Main Features:

  • Support real time live detection

  • Support remote temperature measurement and high temperature alarm

  • Support temperature data interface protocol docking

  • Support tracking of personnel movements under strong backlight conditions

  • Unique live face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s

  • Built-in domestic CPU

  • Using Linux operating system, better system stability

  • The camera uses H.265 Main Profile encoding, compatible with NVR and other storage devices through the ONVIF protocol

  • Support TF card storage, pictures are stored continuously for 1 year or longer (depends on TF card capacity)

  • Mean time between failures MTBF>50000 H

  • Support 24000 face matching library and 160,000 face recognition records

  • Rich interface protocol, support TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocol, Windows/Linux

  • Built-in light sensor, automatically adjust the opening and closing of the fill light

  • Rich hardware interface (I/O, WG26, WG34, RJ45, USB, RS485)

  • 8-inch IPS full-view HD display, no streaking and delay

  • Support automatic gain control and automatic white balance

  • 3D noise reduction and fog-passing technology makes the monitoring picture under low illumination more clear and delicate

  • Support code stream and I frame interval setting

  • Support video area partial blocking

  • Support ROI coding

  • Support setting maximum exposure time

  • Support 2D noise reduction, 3D noise reduction

  • Support recording schedule time period and upload mode setting

  • Support video brightness, contrast, hue, saturation, gamma adjustment

  • Support setting the maximum auto exposure time

  • Support face intelligent exposure, face smart enhancement settings

Specifications:

Hardware
ProcessorDual Core Processor+ 1G memory + 16G flash
Operating systemLinux Operating system
StorageSupport TF card storage
Viewing angleVertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor1/2.8" Progressive Scan CMOS(IMX307)
Lens6mm
Speakervoice playback content can be customized
Measurement range16℃ - 40℃ (Indoor without wind)
Temperature measurement lensEuropean original lens
Sensors typeGermany imported sensors
Fieldangle(FOV)33°
Array resolution32*32
Measurement accuracy±0.3
Temperature resolution0.1
Temperature measurement distance80cm
Performance
Recognition height1.2~2.2 meters, angle adjustable
Recognition distance0.3~1.5 meters, depends on lens
Recognition timeLess than 0.5 seconds
Storage capacity160,000 capture records
Face capacity24000pcs
Screen brightness≥400 cd/m2
Interface
Switching output1 way switch output, other GPIO port can be customized
Network interface1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface1ch Wiegand interface input/output
Communication interface1ch RS485 interface
USB interface1ch USB interface
Camera
Camera
Dual cameras, visible and near infrared, support live detection
Effective pixels2MP,1920*1080
Min IlluminationColor 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR≥50db(AGC OFF)
WDR120db, ISP algorithm face partial exposure
Function
Web side configurationSupport
Remote upgradeSupport
LAN/ WANSupport
General
Working humidity0~90% relative humidity, no condensation
Salt spraylevel Rp6 or above
Antistaticcontact ±6KV, air ±8KV
PowerDC12V/2A , 20W(MAX)
Column
36mm
Equipment size252(L) * 136 (W) * 26 (T) mm
Screen size8 inches IPS HD screen
Weight
1.7kg
