current position：Temperature Detection Device

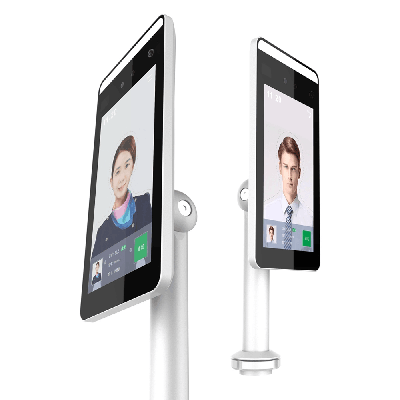

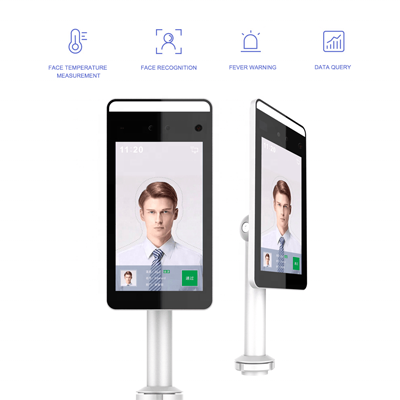

Security 7 inch Face Recognition Thermal Temperature Measurement Camera
Mode:FK02GYW
Release time：2021-02-25Temperature Screening and Face Recognition Terminal, it's fast and simple to operate, and it's a non-contact measurement with high precision and a wide range of application,Support Wrist Temperature Detection, Fever Warning, Mask Detection.
The Traditional Temperature Measuring Gun Needs To Be Held By A Person, And The Efficiency Is Low; All-in-one Face Temperature Measuring Machine,
Automatic Temperature Measurement By Facial Scanning, Saving Manpower And Improving The Efficiency;
Among Mobile People, People Without Masks Can Be accuturely detected,By facial scanning, it can automatically record personal information and check
the records of relevant people going in and going out, so that it is convenient for personnels to be checked again;
Automatically record abnormal temperature information of the human body and automatically count relevant person;
Adopt deep learning algorithm, support 30,000 face database, 200ms speed recognition, to achieve the rapid movement of personnel;Support data network upload, the device comparison results and snapped photos can be uploaded to the platform for real- time storage, and data
can be continuously uploaded even if the network is off.Camera: 2 million cameras
Operating system: Linux
Display: 7 inch IPS hd 1024* 600,300 CD /m2
Hardware interface: RS485, RS232, RJ45, relay output
Fill light lamp: infrared fill light, white light fill light
| System | |
| Main Processer | MX3520 |
| Operating system | Embedded LINUX |
| RAM | DDR3 512MB |
| ROM | EMMC 8GB |
| LCD Panel | |
| Size | 7inch IPS HD Screen |
| Resolution | 736*1280 |
| Camera1 | |
| Type | 200w night vision live camera |
| Sensor | 1/5 GC2145 |
| Resolution | NIR 600*800 15fps |
| Lens | 2.4mm |
| Camera2 | |
| Type | Daily camera |
| Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307 |
| Resolution | Colorful 1920*1080 30fps |
| Lens | 4.5mm |
| Human Body Temperature Measurement | |
| Test location | forehead |
| Temperature measurement range | 36-42 ℃ |
| Temperature measurement distance | 0.5-1m, 0.75m is the best |
| Temperature measurement accuracy | ± 0.3℃ |
| Temperature measurement time | Face library: 1.5-2s, stranger: 2.5-3s |
| Face Recognition | |
| Detection type | Supports live object detection,wearing mask detection |
| Face recogition distance | 0.5-2.2m |
| Face library capacity | Supports up to 30,000 sheets |
| Recognize face angle | (Daytime) vertical viewing angle 58-60, horizontal viewing angle 35; (living body) vertical viewing angle 48-50, horizontal viewing angle 36 |
| Fault tolerance | Ordinary glasses and short sea surface retention time have no effect on recognition |
| Expression | Under normal circumstances, slight expressions do not affect recognition |
| Response time | About 200ms |
| Local storage | Support 25,000 records |
| Recognition area | Full screen recognition |
| Upload method | TCP, HTTP, MQTT |
| Network features | |
| Network protocol | IPv4, TCP/IP,HTTP |
| Safe mode | Authentication username and password |
| Alarm linkage mode | Voice broadcast,Abnormal upload to the platform |
| System Upgrade | Support remote upgrade |
| Hardware accessories | |
| Auxiliary light | Infrared fill light, white light fill light |
| Speaker | Support voice broadcast for successful recognition results |
| Hardware interface | |
| Network interface | RJ45 10M/100M Network Adaptation |
| Alarm input/output | No |
| RS485 | Support |
| TF card slot/ HDMI | No |
| Wiegand interface | Support Wiegand 26, 34, 66 protocols |
| Reply button | Support |
| General | |
| Shell | Metal body and bracket, plastic panel, IP66 |
| Operating temperature | -20 ° C ~ 60 ° C |
| Working humidity | 10%-90% non-condensing |
| Storage temperature | -40 ° C ~ 70 ° C |
| Storage humidity | 5%-95% non-condensing |
| Supply voltage | DC12V |
| Power consumption | ≤ 12 W |

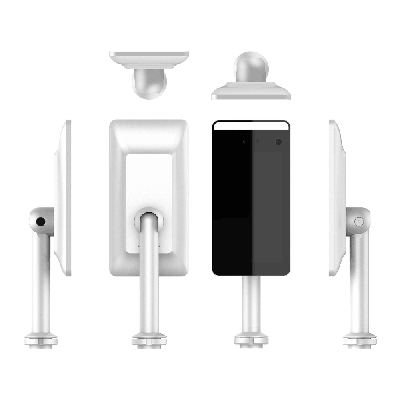

| Size(mm) | 219(W) * 111(H) * 21.5(T) |
| Bracket size(mm) | φ25*189 |
| Installation method | Desktop installation / floor standing installation |
